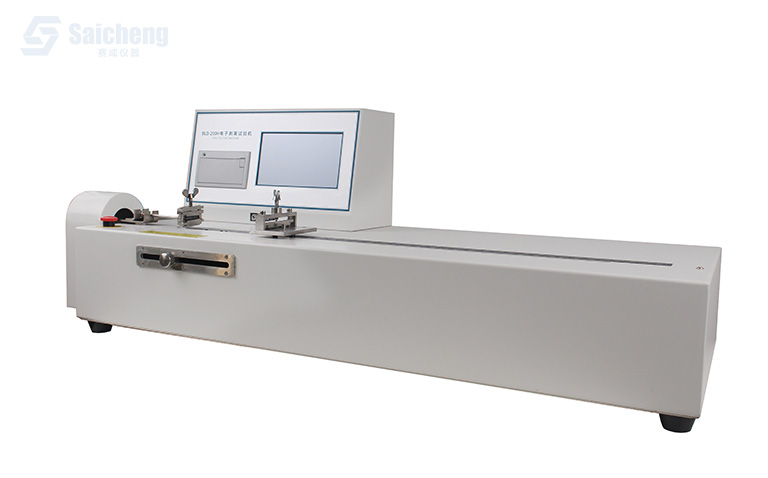

BLD-200H Peel Strength Tester
- Model: BLD-200H
- Brand: Saicheng® Instrument
- Category: Peel Strength Tester
- Rating:
- Share:
Product Introduction
BLD-200H Peel Strength Tester can be used for peeling, stripping and other performance tests of adhesives, adhesive tapes, pressure sensitive tapes, medical adhesive bandages, protection films, release paper, laminated films, leather, woven bags and paper.
BLD-200H Video on YouTube
Product Features
- Seven inch touch screen.
- Micro-computer control, menu interface, PVC operation panel.
- Real-time curve, support software controlling.
- Test Modes: 90° peel force, 180° peel force, tensile strength.
- Screw drive system improved the displacement accuracy. Test speed is adjustable.
- Maximum value, minimum value, average value and group data analysis are available.
- Over load protection, power failure protection, user friendly.
- Equipped with micro printer and USB port which is convenient for the data transfer and PC connection.
- Multiple units available of N, KN/m, lbf, gf. Test report could be printed automatically after the test.
- Comply with international standards of ISO, JIS, ASTM, DIN etc.
Test Standards
This test instrument conforms to many national and international standards:
GB/T 4850, GB/T 7754, GB/T 8808, GB/T 13022, GB/T 7753, GB/T 17200, GB/T 2790, GB/T 2791, GB/T 2792, QB/T 2358, YYT 0507, YYT0148, JIS-Z-0237, HGT 2406-2002
Applications
| Basic Applications |
|---|
|
Tensile Strength and Deformation Rate |
|
Tensile Strength at Break |
|
180 Degree Peel Test |
|
90 Degree Peel Test |
| Extended Applications |
|
Tear Resistance |
|
Shearing Performance |
|
Heat Seal Performance |
|
Low Speed Unwrapping Force |
|
Release Paper Peel Test |
|
Adhesive Strength Test (soft) |
|
Adhesive Strength Test (hard) |
Technical Specifications
| Items | Specifications |
|---|---|
| Test Range | 200N (Standard) |
| 30 N, 50 N, 100 N (Optional) | |
| Accuracy | 1% FS |
| Resolution | 0.01N |
| Test Speed | 1 ~ 500 mm/min (Adjustable) |
| Sample Width | 0 ~ 30 mm |
| Stroke | 650 mm |
| Power | 40 W |
| Power Supply | AC 220V 50Hz |
| Instrument Dimension | 880mm(L) x 320mm(B) x 400mm(H) |
| Net Weight | 25 kg |
Configurations
Standard Configurations: Instrument, Micro Printer, Test Plate, Standard Roller
Optional Parts: Load Cell, Professional Software, Communication Cable, Sample Cutter and Customized Sample Grips
Please Note: Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
